PowMr 20 Pairs Solar Panel Connector Male and Female 1pair Spanner Fit For Solar Cable Cross Sections 2.5mm2~6.0mm2 IP67
$44.94
- Description
- Reviews (0)
- Vendor Info
- More Products
- Store Policies
- Inquiries
Description
Description
- Origin: CN(Origin)
- Certification: CE
- Model Number: MC4X-BN2*20 MC4 Spanner*2
- Rated Voltage: TUV 1000V DC / UL 600V DC
- Rating Current: 20A~25A
- Suitable cable cross sections: 2.5mm2~6.0mm2 / 14AWG~10AWG
- Pin dimension: 4.0mm
- Proof voltage: DC 8KV(1Min)
- Contact Material: Copper, tin-plated
- Contact Resistance: 5mW
- Connector Material: PPO
- Type: M-B2
PowMr 20 Pairs MX-BN2 Solar Panel Connector Male and Female + 1pair Spanner Fit For Solar Cable Cross Sections 2.5mm2~6.0mm2 IP67 Waterproof

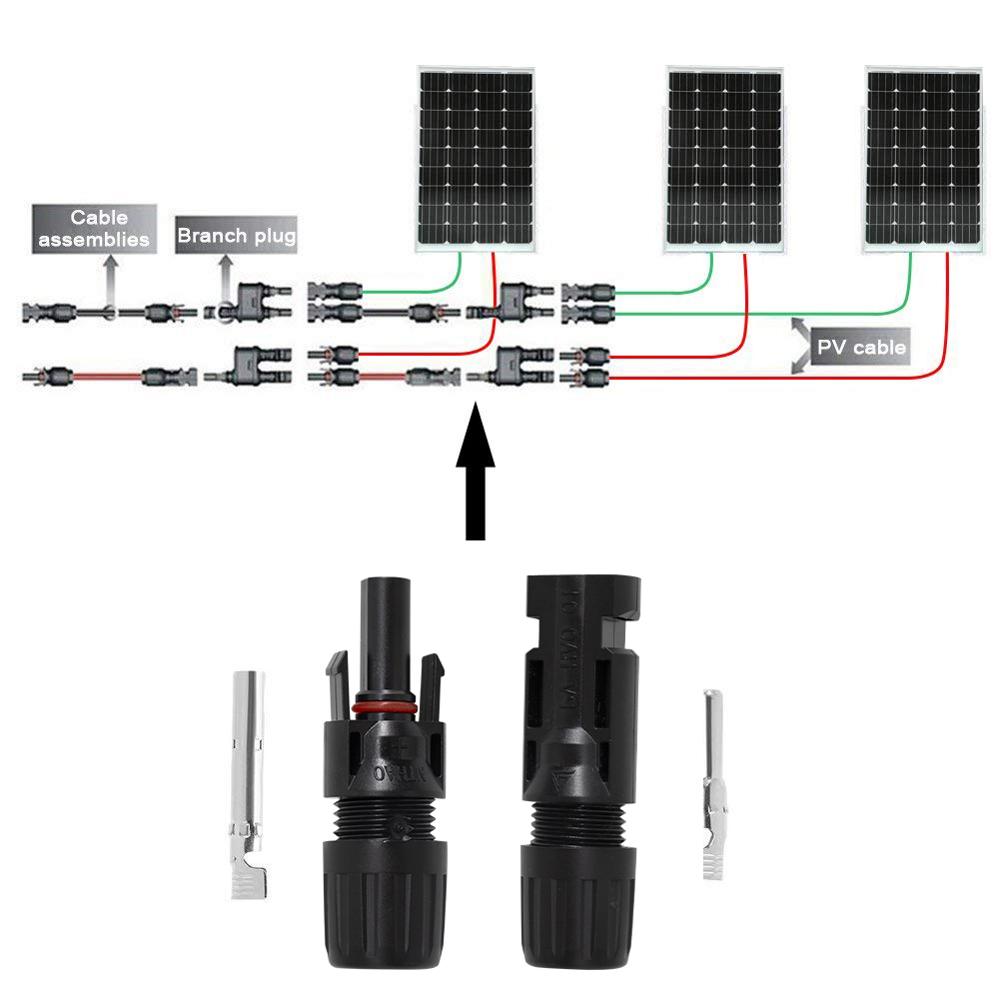

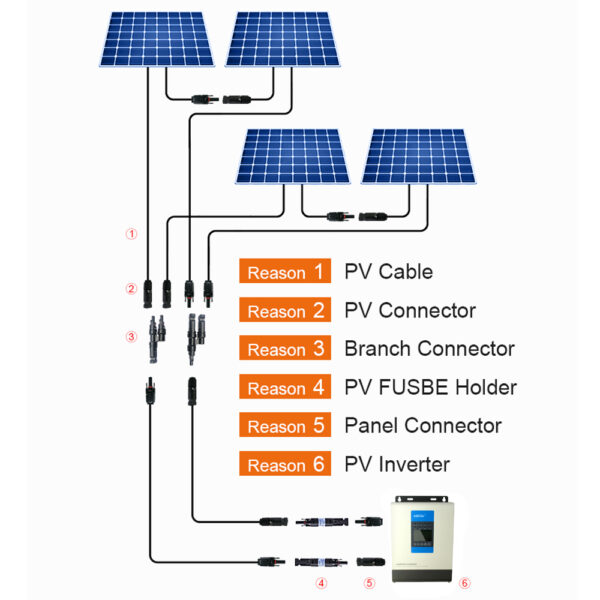

This solar Panel connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
DC 1000V DC / 1500V New Arrival ，you can open the above link
Specifications
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A – 14 AWG (2.5mm⊃2;), 30A – 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
Test voltage: 6 kV (50 Hz)

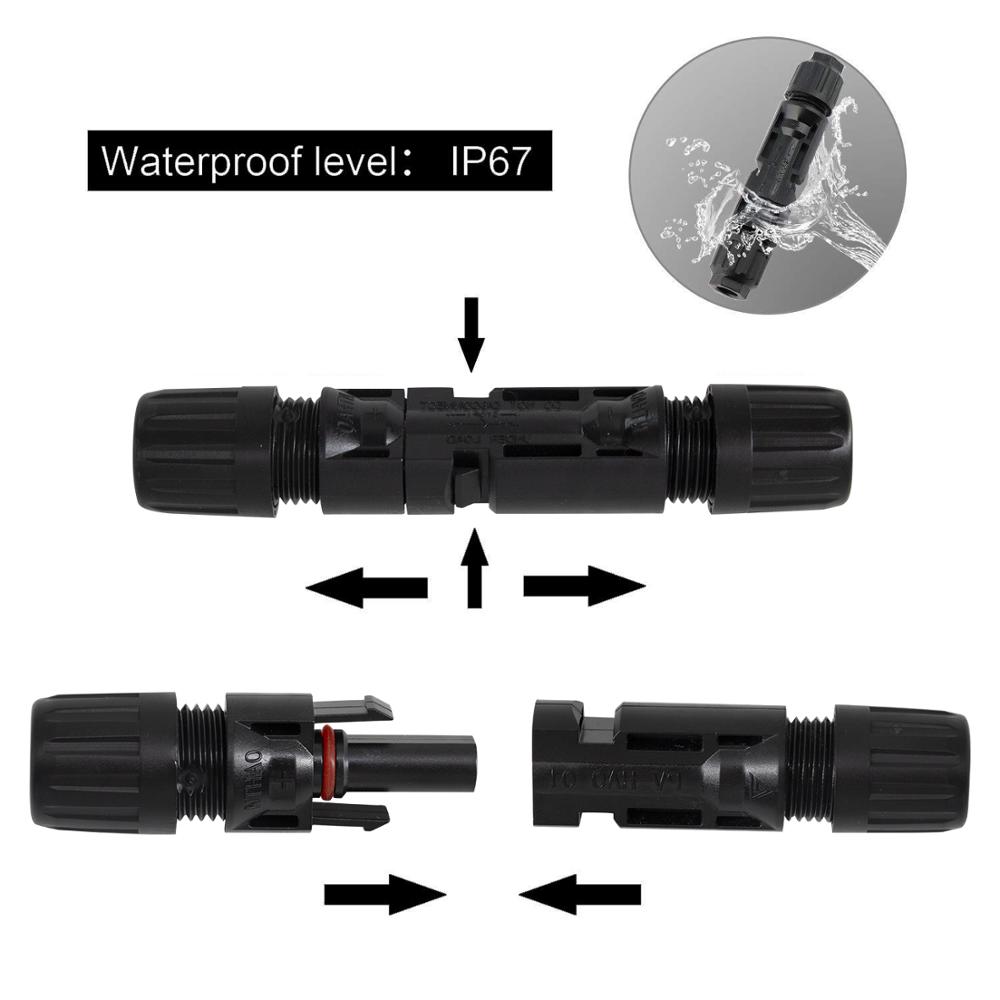

Protection grade: IP67
Insulation material: PC/PA
Contact material: Copper, silver-plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
Locking system: Snap-in

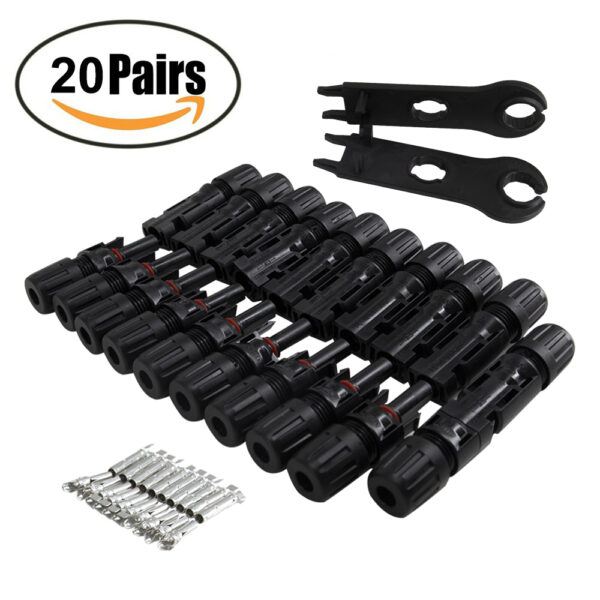

Package Including
★ 20 pairs x MX Connectors
★ 1pair x MX Spanner
