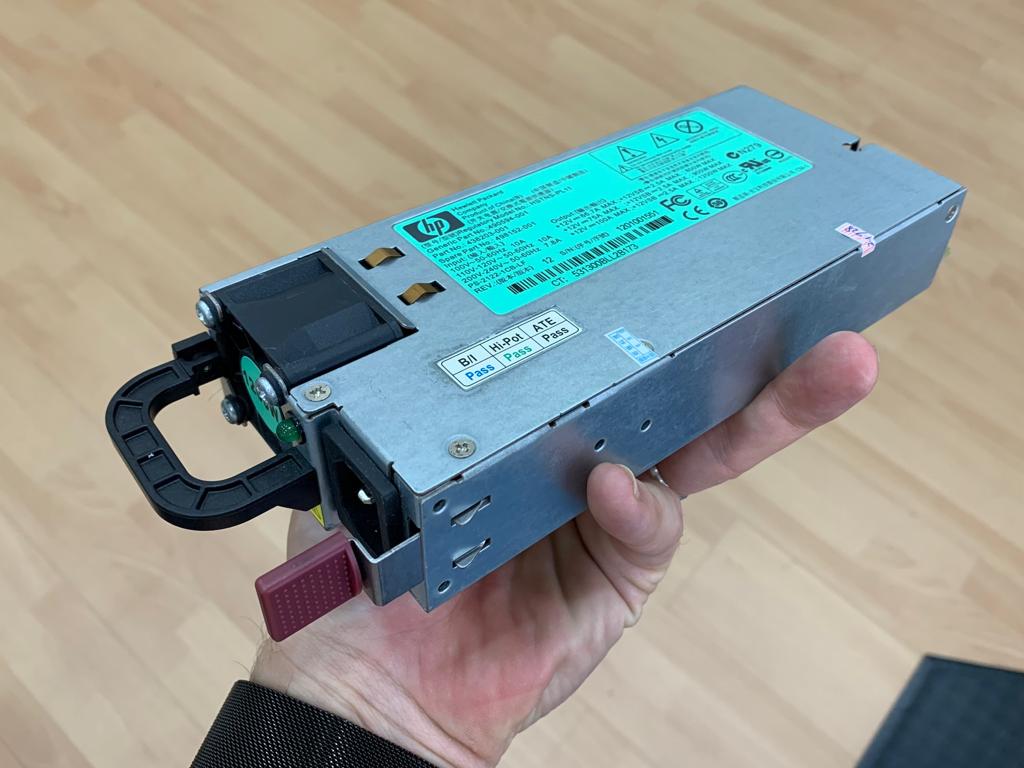

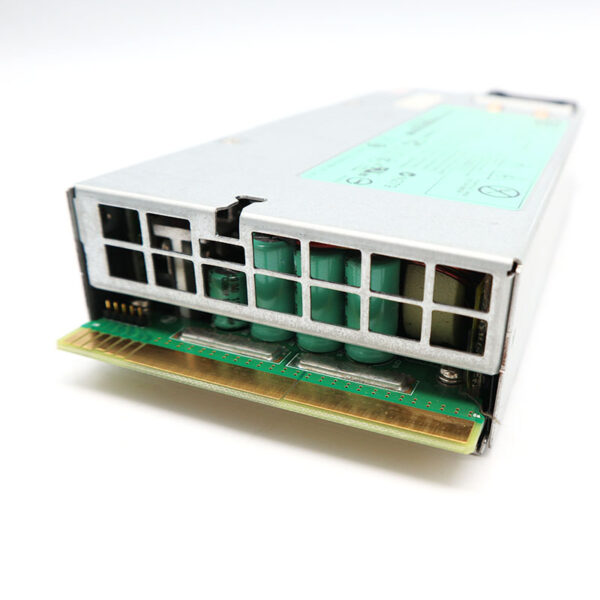

1200W Power Supply For HP DL580G6 G7 438202-001 441830-001 Tested Mining Power w Breakout Board 50cm Cable 6pin To 8pin

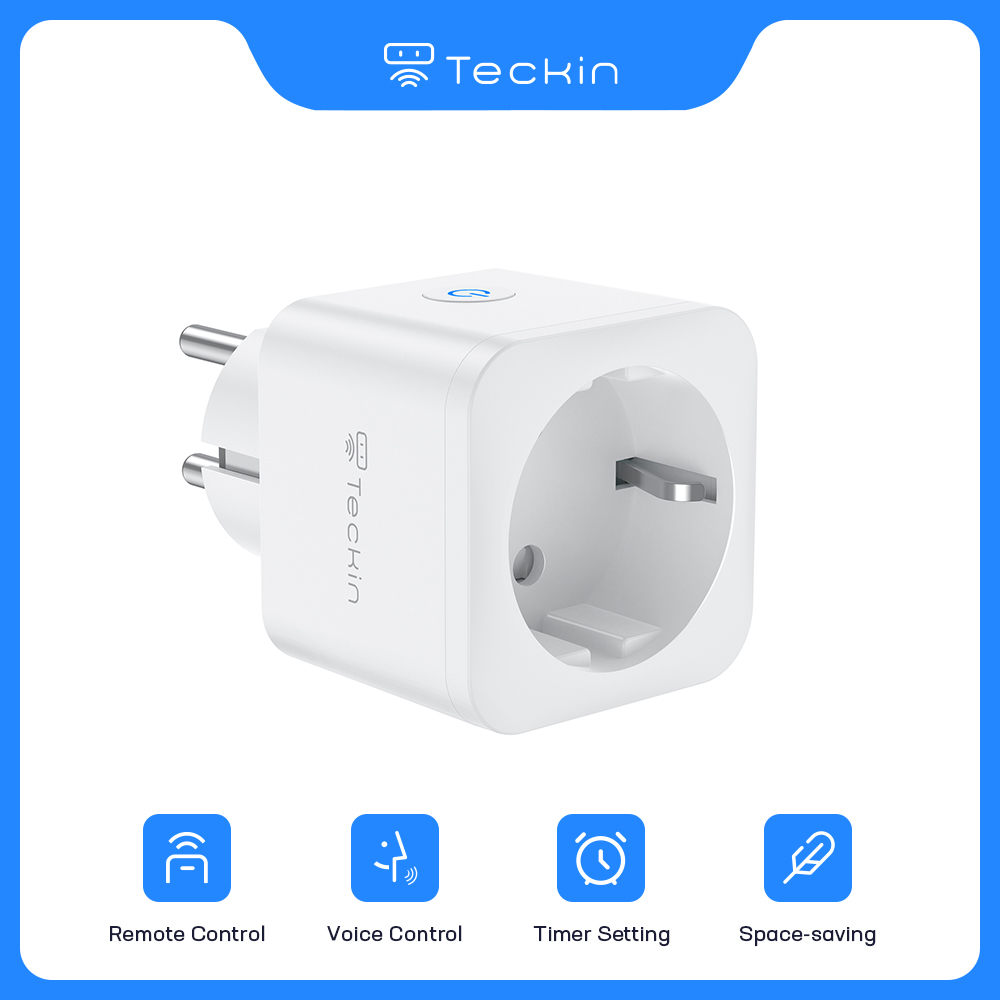

Teckin SP21 Mini Smart Plug, Voice Remote Control, Alexa Google Home, Smart Life, Timer & Schedule, 90 Days Free Replacement

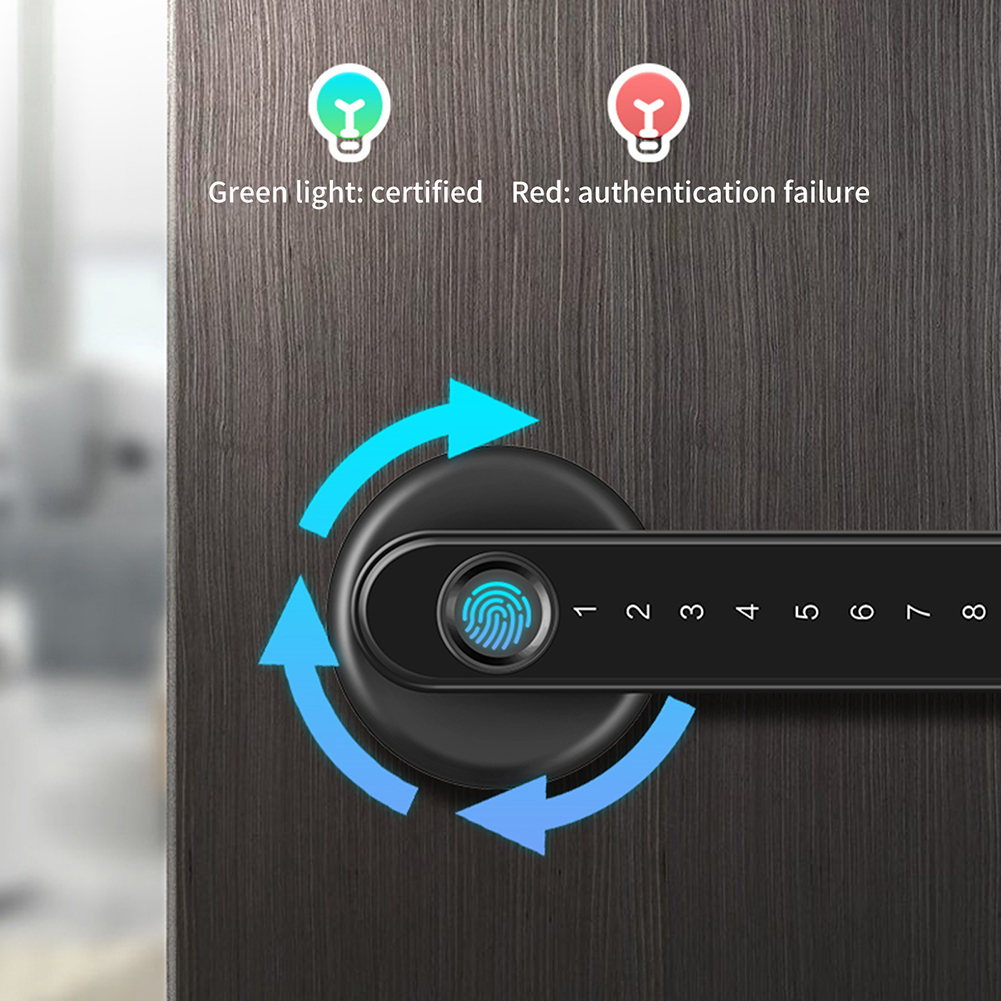

Security Fingerprint Door Lock Smart App Control Electric Lock Keyless Entry Biometric Keypad Password Lever Handle Lock
0 out of 5
( There are no reviews yet. )

$38.94 – $307.47

SKU: 1005003460957778 Category:
  Ask a Question
Add to wishlist
Compare

Description

  • Brand Name: ICROATO
  • Certification: CE
  • Origin: CN(Origin)
  • Output Interface: Type-C
  • Usage: Laptop
  • Output Type: AC
  • is_customized: Yes
  • Connection: Desktop
  • Model No: Server Power Supply
  • Item No: 1200W Server Power Supply
  • Product Name: Server Power Supply
  • Type: Power Supply
  • Feature: 1200W Server Power Supply
  • Usage: for HP DL580G6 G7 psu 498152-001 490594-001 438203-001 Mining PSU

1200W PSU Power Supply for HP DL580G6 G7 498152-001 490594-001 438203-001+ Breakout Board +12pcs 6Pin to 6+2Pin Power Cable 50cm

HP DL580G6 G7 server 1200W power supply HSTNS-PL11 490594-001 498152-001

Original HP DL360 DL380G6 G7 1200W server power supply 490597-001 498152-001 used power supply 1 month warranty! Spot!

Feature


Types of：Mining power

Model：HP DL580 G5 DPS-1200FB A 438202-001 440785-001 441830-001

Shell material: Metal case

Color: silver

Power supply size: 24.5*4*8.5CM

Package：1*power

Rated power:1200W

Input: 200V-240V, 7.8A

Output: 1200W max

Features:Efficiency 1200W Switching Power Supply for GPU Open Rig Mining

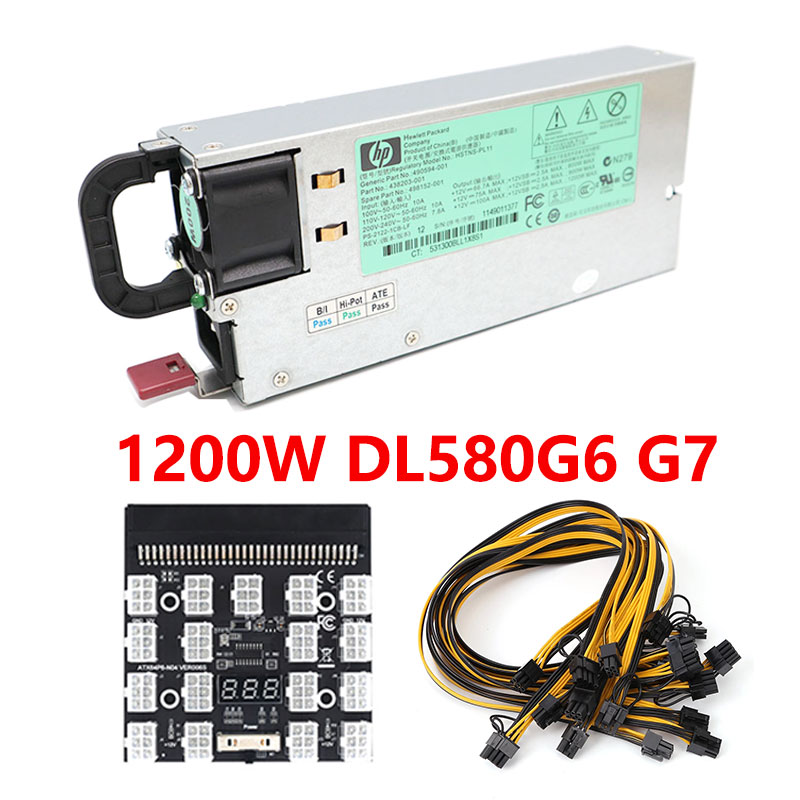

GPU Mining Power Supply Kit, including:


as your choose

1 Piece x 1200W Power Supply 490594-001HSTNS-PL11 (Used Power Supply, may have scratches on the surface, but working fine)

1 Piece x 12 ports breakout board

1 Piece x 17 ports breakout board

12 Pieces x PCIe 6Pin to 6+2Pin power cable 60cm 18AWG

17 Pieces x PCIe 6Pin to 6+2Pin power cable 60cm 18AWG

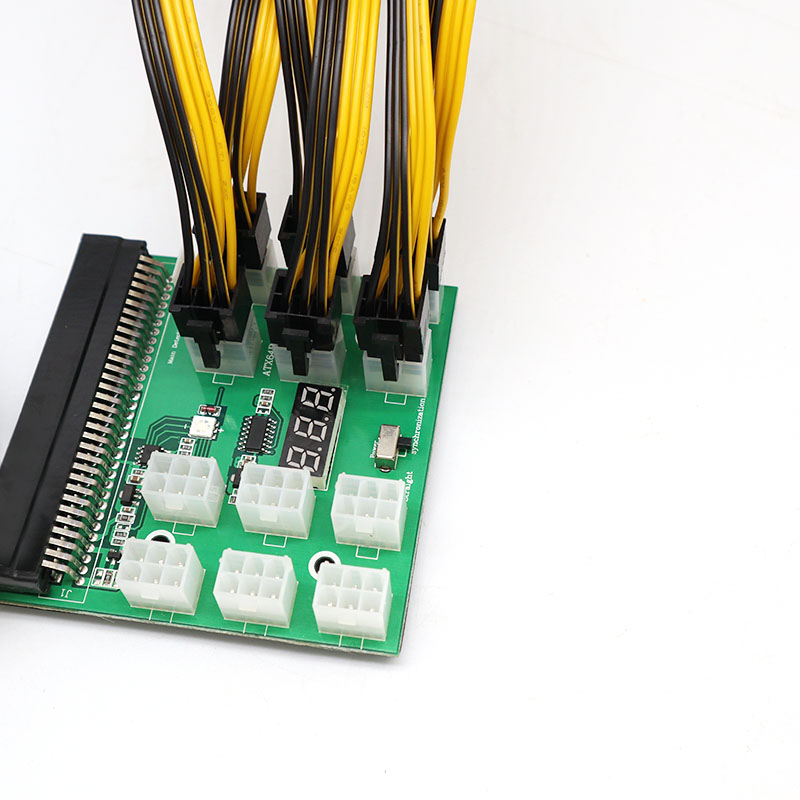

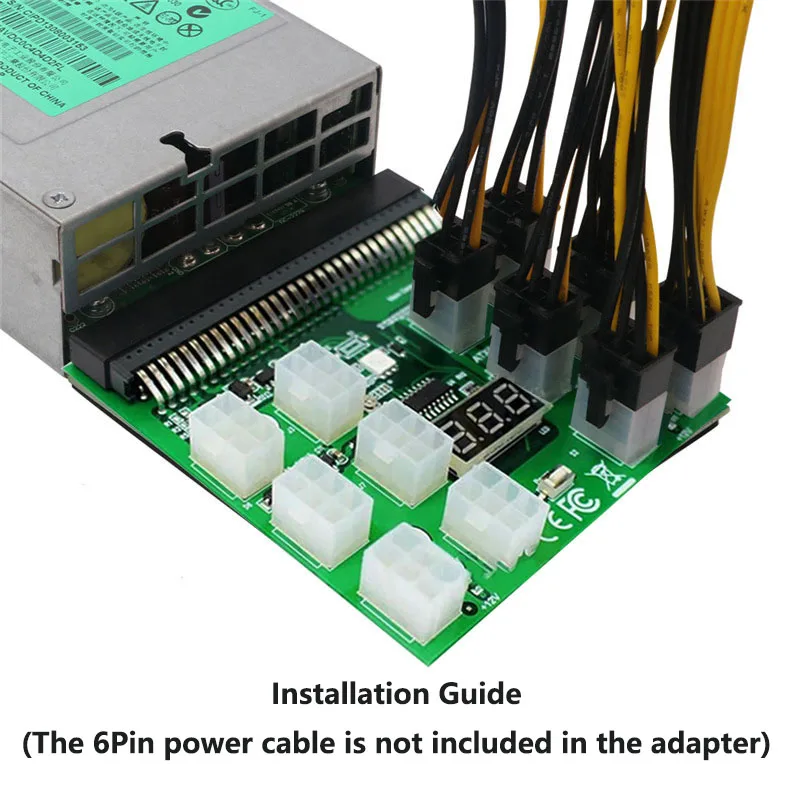

Breakout Board Description:
1.1200w/750w breakout board for HP PSU GPU Mining ETH ETC with button.
2.Voltmeter LED display.
3.Built-in (12) PCI-E connecors on board for quick easy connect.
4.Fine workmanship and good performance.
5.Support up to 12 PCI-e cable.
6.Compatible with ALL HP power supplies up to 1600Watts.
7.Support dual PSU starting at the same time with the small 4 pin connector.

Fitment:
"Universal Slot" power supply models supported by the power board:
DPS-800GB A
DPS-1200FB A
DPS-1200QB A
PS-2751-5Q
PS-2751-LF-1F
HSTSN-PL12
HSTNS-PL18
HSTNS-PL11
HSTNS-PD11
DPS-700LB D
PS-2112-5L
DPS-750RB A
DL580
438202-002
441830-001
511778-001


Power Cable Specifications
Length: 50cm / 60cm
Wire model: 1007 18AWG
Conductor material: tinned copper

Power Cable Description:
1.6 PIN to 8(6+2) PIN: One end is 6 Pin male port, the other end is 8(6+2) Pin male port.
2. PCI EXPRESS POWER CABLE: Standard 6 Pin port connecting to PSU, the other 8(6+2) Pin port connecting to GPUs.
3. ONLY PSUs with 6 PIN PORT: ONLY compatible with CoolerMaster and Thermaltake PSUs with 6 Pin port, NOT compatible with EVGA,  Corsair an Antec PSUs, Please check your PSU before buying it.
4. ONLY GRAPHICS CARDS: Designed for graphics cards, it doesn't work with motherboards.
5. 6 PIN & 8 PIN GRAPHICS CARDS: Compatible with 6 Pin & 8 Pin graphics cards from popular manufacturers from ASUS, ASRock, Radeon, Sapphire, and Gigabyte.
